Ytterbium fibre laser

SLV Halle GmbH uses these laser sources for application testing. Their benefits comprise an extremely small footprint and very compact cooling designs coupled with high output power and excellent electron beam quality for completely new fields of application using laser beam material treatment.

Ytterbium fibre laser, 12 kW
Laser output: 12.2 kW
Wavelength: 1,070 nm
Fibre core diameter, laser beam quality:
300 µm/15 mm x mrad
100 µm/4 mm x mrad

Ytterbium fibre laser with cooling, 6 kW
Laser output: 6 kW
Wavelength: 1,070 nm
Fibre core diameter, laser beam quality:
300 µm/10 mm x mrad
200 µm/7 mm x mrad

The following guide systems are available for application implementation.

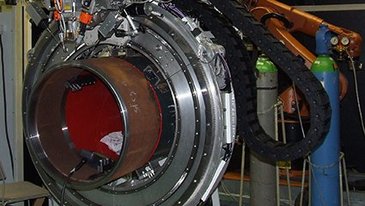

Specialised prototype for orbital laser MIG/MAG hybrid welding

Portal unit with three linear axes and one rotational axis
Working space: 1 m x 1 m x 1.5 m

Testing using fibre laser focuses on integration and technological experimentation using laser sources for research activities at SLV Halle GmbH, with the onus on 0.5 to 15 mm thickness ranges.
